GERBER Files for Reverse-Engineered BusCard

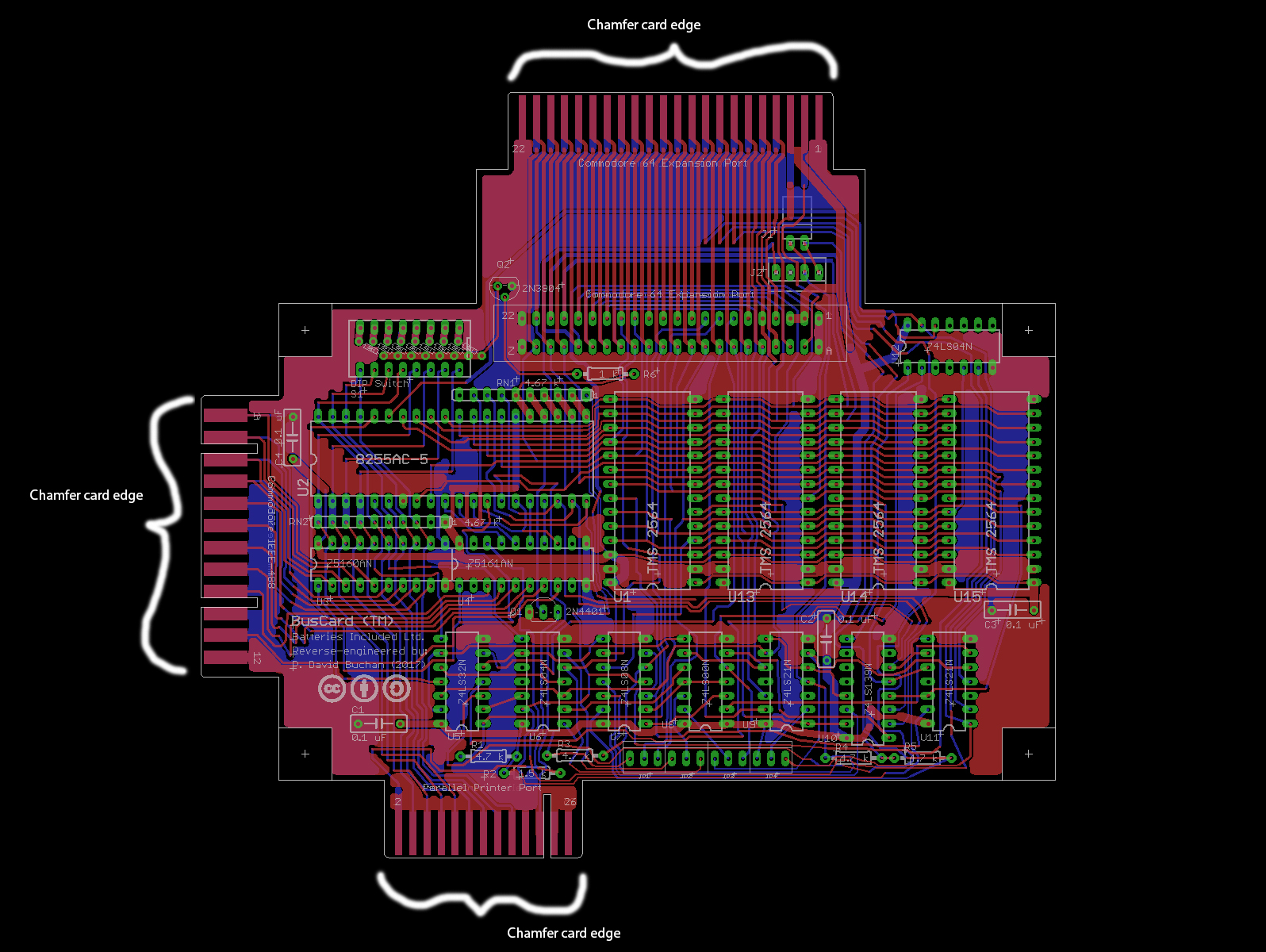

The following files were put into a .zip archive and sent to the board manufacturer. These are the files Elecrow requires. Your manufacturer may request something slightly different. Along with the GERBER files, I included a text file requesting gold fingers for the card edges, and a jpg image showing that I want the card edges to be chamfered.
GERBER Files |
Chamfer and Gold Finger Request Files |
|
P. David Buchan pdbuchan@yahoo.com
August 1, 2017
